| Producent | Brocade Communications Systems |
| Type | Netværksadapter |
- Dual-port pluggable media interface, which may be equipped with 25GbE or 10GbE SFP28/SFP+ optical transceiver or with copper direct-attach cable
- Fully compliant to the SFF-8402 standard
- X8 PCI Express v3.0 compliant
- SR-IOV with up to 128 VFs
- Function Level Reset (FLR) support
- TruFlow flow processing engine
- Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap
- VSwitch acceleration
- Tunnel-aware stateless offloads
- DCB support: PFC, ETS, QCN, DCBx
- RDMA over converged Ethernet (RoCE)
- SMBus 2.0
- MCTP over SMBus
- PCIe-based UART and KCS
- Jumbo frames up to 9 KB
- Advanced Congestion Avoidance
- Multiqueue, NetQueue, and VMQ
- IPv4 and IPv6 offloads
- TCP, UDP, and IP checksum offloads
- Large Send Offload (LSO)
- Large Receive Offload (LRO)
- TCP Segmentation Offload (TSO)
- Receive-side Scaling (RSS)
- Transmit-side Scaling (TSS)
- VLAN insertion/removal
- Interrupt coalescing
- Network boot-PXE, UEFI
- ISCSI boot
- MSI and MSI-X
- Conforms to the PCI Express Card Electromechanical Specification Rev. 3.0

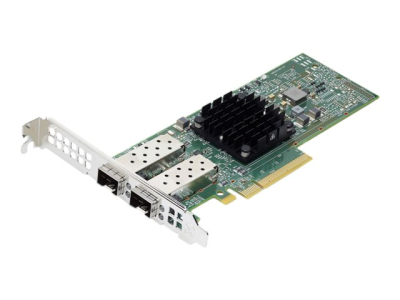

Broadcom BCM957414A4142CC er et dual-port 25 Gb/s eller 10 Gb/s PCI-Express Gen3 x8 Network Interface Card, der understøtter både SFP28/SFP+ optiske moduler og kobber-direct attach-kabel. Kortet bruger Broadcom BCM57414 25GbE MAC-controlleren med den integrerede dual-channel 25GbE SFI transceiver.
